Towards Learning Structure via Consensus for Face Segmentation and Parsing

This is the official repo for the Structure via Consensus for Face Segmentation and Parsing (CVPR 2020).

For method details, please refer to the paper and the supplementary material.

If you find our method useuful, please cite it as:

  @inproceedings{masi2020structure,
      title={ Towards Learning Structure via Consensus for Face Segmentation and Parsing},
      author={Masi, Iacopo and Mathai, Joe and AbdAlmageed, Wael},
      booktitle={Conference on Computer Vision and Pattern Recognition (CVPR)},
      year={2020},
      organization={IEEE/CVF}
  }

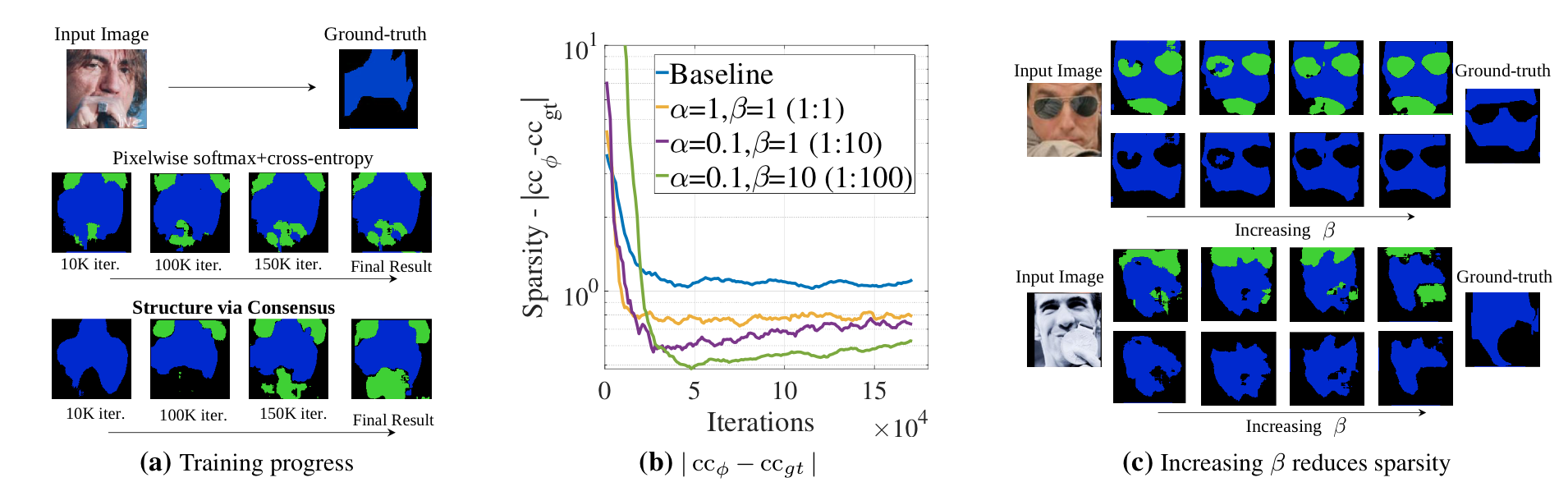

_{More regular, smooth structure learned; (a) As the training progresses, our method learns more regular, smooth structure which yields a more regular mask when compared to the pixel-wise baseline (sample from the COFW test set); (b) less sparsity is confirmed by visualization of the error in the number of connected components between the predicted and annotated mask. (c) A higher weight on beta greatly decreases the sparsity of the masks on average.}

Overview

The gist of the approach is an attempt to induce structure through smoothness in the pixel-wise prediction of a semantic segmentation network trained with a DCNN (Deep Convolutional Neural Networks); the smoothness is enforced for the task of occlusion detection thereby attempting to get occlusion predictions with a better, structured output. Later on, the method is also used for other similar tasks such as face parsing with 3 classes (skin, background, and facial hair/hair).

Please, note here the scope is not to get state-of-the-art results on benchmarks yet seeking for a solution on how to enforce structure in the pixel-wise prediction of a DCNN and proving that inducing smoothness can be a feasible and promising direction.

Dependency

The code is written in python and pytorch. A requirements.txt file is avaialble for reference although it contains also unrelated packages.

Pytorch: 1.1.0
Python: 3.7.5

Other versions might also work, but not tested.

New Loss Python package

Installation

Typical Install

pip install git+https://github.com/isi-vista/structure_via_consensus/loss_package

Typical Usage

from structure_via_consensus import StructureConsensuLossFunction

consensus_loss_alpha=10.0
consensus_loss_beta=5.0
reduce_pixel='idx'
reduce_pixel_kl='idx'

## Define new loss
loss_func = StructureConsensuLossFunction(consensus_loss_alpha,
                                     consensus_loss_beta,
                                     reduce_pixel=reduce_pixel,
                                     reduce_pixel_kl=reduce_pixel_kl
)

for epoch in range(args.nepochs):
    for ib, batch in enumerate(train_dataloader):
        img, mask_class, mask_sp = batch
        img = img.cuda()
        mask_class = mask_class.cuda()
        mask_cc = mask_class.clone().cuda()
        ## prediction
        pred_mask = model(img)
        # calculate losses
        loss = loss_func(pred_mask,mask_cc,mask_class)
        # backpropogate
        loss.backward() # compute the gradients and add them

Initialize the class:

consensus_loss_alpha: hyper-param that ensures we match the label class
consensus_loss_beta: novel hyper-param enforcing consensus
reduce_pixel: how to normalize 1st term of Eq. (8) 'idx' will normalize by size each blob. 'all' will normalize by HxW where HxW is the size of the image;' idx' is the one used. Please, note that you should NOT use the option 'all' since from experiments we found out it may underperform because it the normalized probabilities will not sum up to one anymore; if softmax is applied again will bring into issues of introducing a temperature in the softmax function, so stick to idx option.
reduce_pixel_kl: same as above but how to normalize 2nd term of Eq. (8) related to consensus. 'idx' will normalize by size each blob 'all' will normalize by HxW where HxW is the size of the image; 'idx' is the one used.

The input to the loss function is described as:

@pred_mask (Wx): is the last output for the convolutional decoder prior to the softmax normalization (softmax normalization is done inside the function) pred_mask.shape is [batch,channel,size_h,size_w]
@mask_cc (C): this is the masks that contains the connected components to go over each blob and enforce consensus over them. This can be same as the label mask or different. Please, refer to Fig. 2 in the paper in the case they are different from the labels mask_cc.shape is [batch,1,size_h,size_w]
@mask_class (y): is the the target label mask as usual in semantic segmentation. Each pixel indicates the index of the class label for that pixel. mask_class.shape is [batch,1,size_h,size_w]

Hyper-params on the loss

We shows that the hyper-param beta correlates with decreasing the sparsity of the ouput mask on average although in our experimentation when fine-tuning on PartLabel and COFW we found out that increasing beta too much may underfit the prediction to the labels in our training time regime. We used a cross-validated ratio of alpha:beta as alpha=10,beta=5 although these values may be dataset dependent. Also, it is important to notice that all the metrics (pixel acc., IoU, etc) currently considered in semantic segmentation do not take sparsity or smoothness into consideration nor countour measures.

Part Label Dataset Demo

One may simply download the repo and play with the provided ipython notebook eval_model_pt_labels_colab.ipynb.

Alternatively, one may play with the inference code using this Google Colab link.

Contact

For any paper related questions, please contact masi@isi.edu or open a Github issues above. Please, note that we do not provide software support besides simply replying to a few questions. Thank you for your understanding.
