4. PCA in higher dimension, 3DMM, the curse of dimensionality

Prof. Iacopo Masi - Computer Science Department, Sapienza University of Rome

Recap previous lecture

• Principal Components Analysis (PCA)
• Eigendecomposition of a matrix
• Geometry behind PCA
• Application of PCA for:
  • Compressing the data (point cloud to line)
  • Modeling 3D Faces (3D Morphable Model 3DMM)
  • Rotating the data

Today's lecture

PCA with SVD

PCA in a high dimensional space

Application: Eigenfaces

Eigendecomposition of Matrices

$$ \mathbf{W} = \begin{bmatrix} 1 & 1 \\ -1 & 2 \end{bmatrix}, $$

be the matrix where the columns are the eigenvectors of the matrix $\mathbf{A}$. Let

$$ \boldsymbol{\Sigma} = \begin{bmatrix} 1 & 0 \\ 0 & 4 \end{bmatrix}, $$

be the matrix with the associated eigenvalues on the diagonal. Then the definition of eigenvalues and eigenvectors tells us that

$$ \mathbf{A}\mathbf{W} =\mathbf{W} \boldsymbol{\Sigma} . $$

If the matrix $\mathbf{W}$ is invertible, we may multiply both sides by $W^{-1}$ on the right, we see that we may write

$$\mathbf{A} = \mathbf{W} \boldsymbol{\Sigma} \mathbf{W}^{-1}.$$

Operations on Eigendecompositions

One nice thing about eigendecompositions is that we can write many operations we usually encounter cleanly in terms of the eigendecomposition. As a first example, consider:

$$ \mathbf{A}^n = \overbrace{\mathbf{A}\cdots \mathbf{A}}^{\text{$n$ times}} = \overbrace{(\mathbf{W}\boldsymbol{\Sigma} \mathbf{W}^{-1})\cdots(\mathbf{W}\boldsymbol{\Sigma} \mathbf{W}^{-1})}^{\text{$n$ times}} = \mathbf{W}\overbrace{\boldsymbol{\Sigma}\cdots\boldsymbol{\Sigma}}^{\text{$n$ times}}\mathbf{W}^{-1} = \mathbf{W}\boldsymbol{\Sigma}^n \mathbf{W}^{-1}. $$

This tells us that for any positive power of a matrix, the eigendecomposition is obtained by just raising the eigenvalues to the same power. The same can be shown for negative powers, so if we want to invert a matrix we need only consider

$$ \mathbf{A}^{-1} = \mathbf{W}\boldsymbol{\Sigma}^{-1} \mathbf{W}^{-1}, $$

or in other words, just invert each eigenvalue.

Eigendecompositions of Symmetric Matrices

• Hessian
• Covariance Matrices*
• PCA*
• Kernels etc

Eigendecompositions and Singular Value Decomposition

Method	$\mathbf{A}$	Decomposition
SVD	any	$\mathbf{A}=\mathbf{U}\mathbf{\Sigma}\mathbf{V}^T$
Eigen	square	$\mathbf{A}=\mathbf{U}\mathbf{\Sigma}\mathbf{U}^{-1}$
Eigen	square/sym	as above but $\mathbf{U}\mathbf{U}^T=\mathbf{I}$

Decomposition as a Geometric Pipeline

$$\mathbf{A}\mathbf{x} = \underbrace{(\mathbf{U} \underbrace{(\mathbf{\Sigma}\underbrace{(\mathbf{U}^{-1}\mathbf{x})}_{\text{1st step/rotate}})}_{\text{2nd step/scale and flip}})}_{\text{3rd step/rotate}}$$

Method	Step 1	Step 2	Step 3
geometry	rotate	scale axis	rotate
SVD	$\mathbf{V}^T$	$\mathbf{\Sigma}$	$\mathbf{U}$
geometry	rotate	scale axis	rotate back
Eig	$\mathbf{U}^{-1}$	$\mathbf{\Sigma}$	$\mathbf{U}$

Decomposition as a Geometric Pipeline

Geometry of SVD

Source: wikipedia

Principal Component Analysis (PCA)

PCA works in unsupervised learning settings

\begin{equation} \underbrace{\{\mathbf{x}_i\}_{i=1}^N}_{\text{known}} \sim \underbrace{\mathcal{D}}_{\text{unknown}} \end{equation}

Assumptions

• $\mathbf{x}_i \in \mathbb{R}^D$
• $N \geq D$ (number of points higher than number of features; or else, more points than dimensions)

Objective: find a transformation (subspace) for compressing the data

Find the projection that maximizes the spread of the data

• Find $\mathbf{u}\in \mathbb{R}^k$ $\left\|\mathbf{u}\right\|_2=1$ for which you can project the data $\mathbf{x}^{\prime}=\mathbb{P}_{\mathbf{u}}\mathbf{x}$

$$ \mathbb{P}_{\mathbf{u}}\mathbf{x} = (\mathbf{x}^T\mathbf{u})\mathbf{u}$$

• We have to maximize the variance once projected.
• Which means projecting x with u large (U):
• We can measure the size of the projection with the $\ell_2$ norm.

$$\arg\max_{\mathbf{u}} \frac{1}{N}\sum_i^N \left\| (\mathbf{x}_i^T\mathbf{u})\mathbf{u}\right\|_2^2$$

Full recipe

$$ \mathbf{X}^{\prime} \leftarrow \frac{\mathbf{X} - \mathbf{\mu}}{\mathbf{\sigma}} $$$$\underbrace{\mathbf{x}^{T\prime}_p}_{\text{rec}} = \underbrace{\underbrace{\mathbf{U}_{|k}}_{k \mapsto D}\quad\underbrace{\underbrace{\mathbf{U}_{|k}^T}_{D \mapsto k}\quad\underbrace{\mathbf{x}^{T\prime}}_{\text{orig}}}_{projection}}_{reconstruction}$$$$ \mathbf{x}_p\leftarrow\left(\mathbf{x}^{T\prime}_p{\mathbf{\sigma}}\right)+\mathbf{\mu}$$

Can be used for compressing and reconstructing the data using U up to k components: $$\underbrace{\mathbf{x}^T}_{\text{prj}} = \underbrace{\underbrace{\mathbf{U}_{|k}}_{k \mapsto D}\quad\underbrace{\underbrace{\mathbf{U}_{|k}^T}_{D \mapsto k}\quad\underbrace{\mathbf{x}^T}_{\text{orig}}}_{projection}}_{reconstruction}$$

Alternative interpretation: Find orthogonal projection that minimizes reconstruction error

$\def\mbf#1{\mathbf{#1}}$

• Find an orthogonal matrix $\mbf{U}\in \mathbb{R}^{D\times k}$ for which:

$$\arg\min_{\mbf{U}} \left\| \mbf{X} - \mbf{U}\mbf{U}^T\mbf{X}\right\|_2^2 \\ \text{subject to} \quad \mbf{U}^T\mbf{U} = \mbf{I_k} $$

• Both interpretations lead to the same results:
  • To compute $\mbf{U}$ you have to compute Eigendecomposition of covariance matrix $\frac{1}{N}\mbf{X}\mbf{X}^T$

What happens if input dimensionality is large?

• $\mbf{X} \in \mathbb{R}^{D\times N}$ then $\mathbb{Cov} = \frac{1}{N}\mbf{X}\mbf{X}^T$ is a big matrix.
• $D \gg N$

What is the shape of $\mathbb{Cov}$?

• $\mathbb{Cov} \in \mathbb{R}^{D\times D}$.
• Eigendecomposition complexity $\mathcal{O}(D^3)$ so, in our case, if $D$ is large we have a computational problem.

What happens in high dimensions?

• Are we supposed to think about the world in a 3-dimensional space?
• Our brain can think in a 3-dimensional world.
• Maybe with relativity theory, we arrive at a 4-D space if we also consider time.
• So why do we need higher dimensions?

High Dimensional Space

• Visualizing one-hundred-dimensional space is incredibly difficult for humans.
• Most of the time the representation for an input datum is a vector in high dimensional space.

• You can think of an image $\mathbf{I}\in \mathbb{R}^{WxH}$ as a point/vector in high dimension.
• For an image $128\times 128$ now our $D$ dimension is very high. $D=128^2=(2^7)^2=2^{14}\approx16K$

• Let's double the image $128 \mapsto 256$

• For an image $256\times 256$ now our $D$ dimension is very high. $D=256^2=(2^8)^2=2^{16}\approx65K$
• Doubling a side increases the dimension four times, due to the two-dimensional nature of images.

• So you can consider an image as a $65K$-dimensional vector!

Let's practice with 2D real data

We will pull a 2D real dataset made of images in the wild using sklearn

from sklearn.datasets import fetch_lfw_people
faces = fetch_lfw_people(min_faces_per_person=60)
print(faces.target_names)
print(faces.images.shape)

['Ariel Sharon' 'Colin Powell' 'Donald Rumsfeld' 'George W Bush'
 'Gerhard Schroeder' 'Hugo Chavez' 'Junichiro Koizumi' 'Tony Blair']
(1348, 62, 47)

faces.images[0,...].shape

(62, 47)

Best Practice: Always look at the data before you start working!

• Do not do simple summary statistics on the dataset
• Always look at large random samples of the dataset
• The data may contain noise that you want to be aware of!
• Do not take for granted that the data and the labels are noise-free
• You could try to plot the data to a lower dimension also (i.e. with PCA)

In total we have (1348, 62, 47) so 1348 images of dimension 62x47 = 2914.

# Plot the faces
N_ax, N_img = 10, 10 #10 rows with 10 images per row
fig, ax = plt.subplots(N_ax, N_img,figsize=(10,10),
                       subplot_kw={'xticks':[], 'yticks':[]},
                       gridspec_kw=dict(hspace=0.1, wspace=0.1))
for i in range(N_ax):
    ax[i,0].set_ylabel(f'Faces {i}')
    for j in range(N_img):
        ax[i,j].imshow(faces.data[i*N_img+j].reshape(62, 47), cmap='gray')

For example, what is this?

plt.imshow(faces.data[9*N_img].reshape(62, 47), cmap='gray')

<matplotlib.image.AxesImage at 0x7fd499e50ca0>

• Looks like a misalignment error!
• This can create noise in PCA estimation

2D images are high-dimensional vectors

• We said faces are vectors that live in a $\mathbb{[0,255]}^{2914}$, if you flatten the dimensions
• Now how many images can you draw in this space, assuming the grayscale values are $[0,\ldots,255]$?

$$256^{H\times W}=256^{2914} \approx 10^{7018}$$

Long Story Short

• The $WxH$ where the faces live defined a HUGE space
• The face samples from this space occupy a very tiny portion of the space
• That is, the space is very sparse given its huge "possible" volume
• Note: the same holds for natural images (not just for faces).

Let's random sample uniformly the space in 2914 dimensions

• This is because there is a difference between:
  1. The space where the data lives (what you see with the image)
  2. The "real" unseen space where the data may be embedded.

# Sampling
samples = np.random.uniform(0, 255, (100, 62, 47)).astype(np.uint8)
# uniformly sample 100 points in 62x47 space.

# Plot the faces
N_ax, N_img = 10, 10  # 10 rows with 10 images per row
fig, ax = plt.subplots(N_ax, N_img, figsize=(10, 10),
                       subplot_kw={'xticks': [], 'yticks': []},
                       gridspec_kw=dict(hspace=0.1, wspace=0.1))
for i in range(N_ax):
    ax[i, 0].set_ylabel(f'Samples {i}')
    for j in range(N_img):
        ax[i, j].imshow(samples[i*N_img+j].reshape(62, 47), cmap='gray')

# Sampling
samples = np.random.uniform(0, 255, (100, 62, 47)).astype(np.uint8)
# uniformly sample 100 points in 62x47 space.

# Plot the faces
N_ax, N_img = 10, 10  # 10 rows with 10 images per row
fig, ax = plt.subplots(N_ax, N_img, figsize=(10, 10),
                       subplot_kw={'xticks': [], 'yticks': []},
                       gridspec_kw=dict(hspace=0.1, wspace=0.1))
for i in range(N_ax):
    ax[i, 0].set_ylabel(f'Samples {i}')
    for j in range(N_img):
        ax[i, j].imshow(samples[i*N_img+j].reshape(62, 47), cmap='gray')

The probability of hitting a face is very small!

The phenomenon is also known as...

The curse of dimensionality

• Fixing the samples you have in a training set, then
• as the dimensionality grows $\rightarrow$ fewer examples in each region of the feature space

The curse of dimensionality

• The number of training samples must grow exponentially with dimensionality if we want to maintain the same "density"

• This also means [informally] that if you increase the input dimension, the number of your training samples should grow exponentially to have the same performance and avoid "overfitting".

• More on overfitting later but let's say for now that overfitting = ML method not working well

Figure Credit DeepAI

Ambient space

_=plt.imshow(faces.data[0*N_img].reshape(62, 47), cmap='gray')

Embedded space

$$\underbrace{\mathbf{I}}_{\text{what you see}} = \mathcal{G}(\text{id}, \text{pose}, \text{age}, \text{etnicity}, \text{illumination})$$

Faces may be "living" in a lower embedded space defined by:

1. Identity
2. Pose
3. Age
4. Ethnicity etc.

Stranger things happen in higher dimensions

• As D increases, the volume of the hypersphere goes to zero while the hyper-cube remains constant.
• Training samples may be located at the corners of the hypercube.

Credit Vincent Spruyt

Distances in high-dimensional space

Distances in high dimensions follow a pattern:

• Distance of points sampled on the unit sphere goes to zero as D increases.
• Euclidean distance of points goes to $4\sqrt{D}$.
• The variance of distances between two random points keeps shrinking as D increases.

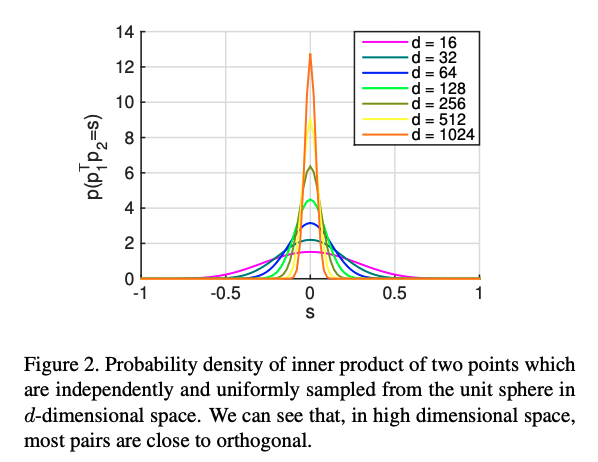

Figure Credit from this paper

See this chapter for more explanations

Dimensionality in ML: some reference numbers

• D ≈ 20 is considered “low dimensional,”
• D ≈ 1,000 is “medium dimensional”
• D ≈ 100,000 is “high dimensional”.

Eigenfaces (i.e. PCA applied to 2D images)

from sklearn.decomposition import PCA

pca = PCA(n_components=150) # retain 150 components
print(faces.data.shape) #NxD N=1348 samples in ~3K-D space
pca.fit(faces.data)

(1348, 2914)

PCA(n_components=150)

fig, axes = plt.subplots(3, 8, figsize=(9, 4),
                         subplot_kw={'xticks':[], 'yticks':[]},
                         gridspec_kw=dict(hspace=0.1, wspace=0.1))
for i, ax in enumerate(axes.flat):
    if i == 0:
        ax.imshow(pca.mean_.reshape(62, 47), cmap='bone') #  plot mean
    else:
        ax.imshow(pca.components_[i].reshape(62, 47), cmap='gray') # plots components

plt.figure(figsize=(20,10))
plt.plot(np.cumsum(pca.explained_variance_ratio_))
plt.xlabel('number of components')
plt.ylabel('cumulative explained variance');
_ = plt.ylim([0,1])

Subspaces in decreasing order of variance

$$ (\lambda_1,\mathbf{u}_1),\ldots,(\lambda_d,\mathbf{u}_d) = \text{eig}(\frac{1}{N}\mathbf{X}^T\mathbf{X}) $$

Note: *numpy is not guaranteed to return it ordered so you have to sort*

How do we choose the subspace where to cut the dimension?

• From $D$-dimensional to $k$-dimension
• Given the spectrum $$\mathbf{\Sigma} = \text{diag}(\lambda_1,...,\lambda_d)$$ we can remove the dimension considering the spectrum "energy" and retain e.g. 95% of the variance in data.

That is, Keep k components until:

$$\frac{\sum_i^k \lambda_i}{\sum_i^d \lambda_i} \leq 95\%$$

Data compression

• The first 150 components explain more than 90% of the data!
• From $2914$ space to $150$ space with no loss of information?
• Let's project back to the input space and see.

plt.rcParams['axes.grid'] = False
from mpl_toolkits.axes_grid1.axes_divider import make_axes_locatable
# Project back to the input
# Project back to the input
projected = pca.transform(faces.data) # project with P = U_t*X_t
unprojected = pca.inverse_transform(projected) # unproject with U*P = U(U_t*X_t)
# Now plot
fig, ax = plt.subplots(3, 10, figsize=(35, 10),
                       subplot_kw={'xticks': [], 'yticks': []},
                       gridspec_kw=dict(hspace=0.1, wspace=0.1))

# it is important to get the max value of the error so that
# we plot heatmap error with the SAME SCALE!
errors_img = [(unprojected[i]-faces.data[i])**2 for i in range(10)]
max_val = max([err.max() for err in errors_img])

for i in range(10):
    ax[0, i].imshow(faces.data[i].reshape(62, 47), cmap='gray')
    ax[1, i].imshow(unprojected[i].reshape(62, 47), cmap='gray')
    erri = ax[2, i].imshow((errors_img[i]).reshape(
        62, 47), cmap='jet', extent=[0, max_val]*2)
    if i == 9:
        divider = make_axes_locatable(ax[2, i])
        cax = divider.append_axes("right", size="5%", pad=0.005)
        plt.colorbar(erri, cax=cax)

ax[0, 0].set_ylabel('full-dim\ninput')
ax[1, 0].set_ylabel('150-dim\nreconstruction')
_ = ax[2, 0].set_ylabel('L2 rec. err')

plt.rcParams['axes.grid'] = False
from mpl_toolkits.axes_grid1.axes_divider import make_axes_locatable
# Project back to the input
# Project back to the input
projected = pca.transform(faces.data) # project with P = U_t*X_t
unprojected = pca.inverse_transform(projected) # unproject with U*P = U(U_t*X_t)
# Now plot
fig, ax = plt.subplots(3, 10, figsize=(35, 10),
                       subplot_kw={'xticks': [], 'yticks': []},
                       gridspec_kw=dict(hspace=0.1, wspace=0.1))

# it is important to get the max value of the error so that
# we plot heatmap error with the SAME SCALE!
errors_img = [(unprojected[i]-faces.data[i])**2 for i in range(10)]
max_val = max([err.max() for err in errors_img])

for i in range(10):
    ax[0, i].imshow(faces.data[i].reshape(62, 47), cmap='gray')
    ax[1, i].imshow(unprojected[i].reshape(62, 47), cmap='gray')
    erri = ax[2, i].imshow((errors_img[i]).reshape(
        62, 47), cmap='jet', extent=[0, max_val]*2)
    if i == 9:
        divider = make_axes_locatable(ax[2, i])
        cax = divider.append_axes("right", size="5%", pad=0.005)
        plt.colorbar(erri, cax=cax)

ax[0, 0].set_ylabel('full-dim\ninput')
ax[1, 0].set_ylabel('150-dim\nreconstruction')
_ = ax[2, 0].set_ylabel('L2 rec. err')

Let's try with only 3 Components!

from mpl_toolkits.axes_grid1.axes_divider import make_axes_locatable

############### Fitting with 3 components ######
pca = PCA(n_components=3) # retain 3 components
pca.fit(faces.data)
#############################################
##### Plot
# Project back to the input
projected = pca.transform(faces.data) # project with P = U_t*X_t
unprojected = pca.inverse_transform(projected) # unproject with U*P = U(U_t*X_t)
# Now plot
fig, ax = plt.subplots(3, 10, figsize=(15, 4.5),
                       subplot_kw={'xticks': [], 'yticks': []},
                       gridspec_kw=dict(hspace=0.1, wspace=0.1))

# it is important to get the max value of the error so that
# we plot heatmap error with the SAME SCALE!
errors_img = [(unprojected[i]-faces.data[i])**2 for i in range(10)]
max_val = max([err.max() for err in errors_img])

for i in range(10):
    ax[0, i].imshow(faces.data[i].reshape(62, 47), cmap='gray')
    ax[1, i].imshow(unprojected[i].reshape(62, 47), cmap='gray')
    erri = ax[2, i].imshow((errors_img[i]).reshape(
        62, 47), cmap='jet', extent=[0, max_val]*2)
    if i == 9:
        divider = make_axes_locatable(ax[2, i])
        cax = divider.append_axes("right", size="5%", pad=0.005)
        plt.colorbar(erri, cax=cax)

ax[0, 0].set_ylabel('full-dim\ninput')
ax[1, 0].set_ylabel('3-dim\nreconstruction')
_ = ax[2, 0].set_ylabel('L2 rec. err')

# Nx3
fig = plt.figure(figsize=(5,5))
ax = fig.add_subplot(projection='3d')
_ = ax.scatter(*projected.T, c=faces.target, marker='.', cmap='jet')

Color maps to Identity

Looks like not a great projection for separating the identity!

In the end makes sense since PCA is an unsupervised method.

Another example for PCA on color RGB images on CIFAR-10

[Taken from cs231n.github.io/neural-networks-2](https://cs231n.github.io/neural-networks-2/)

Now I will show you some data and then you need to tell me if using

PCA is a good way to separate the color of the data

plt.figure(figsize=(10,10))
np.random.seed(0)
N_samples = 50
# samples points for class 1
X_1 = np.random.uniform(50, 200, N_samples)
X_1 = np.vstack((X_1, (1,)*N_samples))
# samples points for class 2
X_2 = np.random.uniform(50, 200, N_samples)
X_2 = np.vstack((X_2, (20,)*N_samples))
X = np.concatenate((X_1, X_2))
# data
X = np.concatenate((X_1, X_2), axis=1)
# labels
labels = X[1, ...]
# Plot also the training points
plt.scatter(
    x=X[0, ...],
    y=X[1, ...],
    c=labels,
    cmap='jet',
)
# Code below wants Nx2
X = X.T
_ = plt.axis('equal')

Why compression

This example is just used for illustrative purposes since Machine Learning is much related to Information Theory.

How to apply PCA

Usage of PCA

• Inductive (estimate basis on training set); apply on test set - Most common
• Transductive (get all the points at test time; estimate and project) - Assumes you have all the points at test time

Inductive Settings

Most of the methods covered in this course are "Inductive" (as opposed to transductive).

• Induction works well for supervised methods but can also be applied to unsupervised methods.
• [Training] Estimate $\mbf{U}$ on a training set (and also mean $\mu$ and std $\sigma$)
• [Test Time] Given a new point $\mbf{x}^{\prime}$ at test-time, apply PCA, that is project $\mbf{x}^{\prime}$ with $\mbf{U}, \mu, \sigma$

On the side: Transductive Settings

Vapnik'98 - Learning by Transduction

Artificial Intelligence and Machine Learning

Unit II

Iacopo Masi

March 17, 2022

Any questions about previous lectures before moving on?

• We will review a few concepts of PCA at the end of matrix calculus

Matrix Calculus

Part of these lectures are taken from:

• CS229 LinAlg
• CS229 Calculus Recap
• Dive Into Deep Learning - Math Appendix

Basic example: scalar to scalar

• Function: $f:\mathbb{R} \mapsto\mathbb{R}$
• Example: $f(x) = x^2$
• Value taken (output): scalar $\mathbb{R}$
• First Derivative: $f(x)^{\prime}$: $2x\in\mathbb{R}$
• Second Derivative: $f(x)^{\prime\prime}$: $2\in\mathbb{R}$

Vector to scalar

• Function: $f:\mathbb{R}^d \mapsto\mathbb{R}$
• Example: Loss or cost function
• Value taken (output): scalar $\mathbb{R}$
• First Derivative: $f(x)^{\prime}$: $\mathbb{R}^d$ Gradient
• Second Derivative: $f(x)^{\prime\prime}$: $\mathbb{R}^{d\times d}$ Hessian - Square and Symmetric Matrix

Vector to vector

• Function: $f:\mathbb{R}^d \mapsto\mathbb{R}^p$
• Example: projection / neural network layer / classifier input vector to 1...N classes
• Value taken (output): vector $\mathbb{R}^p$
• First Derivative: $f(x)^{\prime}$: $\mathbb{R}^{d\times p}$ Jacobian

• Second Derivative: $f(x)^{\prime\prime}$: $\mathbb{R}^{d\times d \times p}$ Tensor of second derivative (high order tensor)



• Informally: a tensor is a generalization of matrices in N-D dimensions

  • Ex: if you stack N 256x256 images you get Nx256x256 which is a tensor.

Why Calculus?

• Let's take a complex function $$f(x) = \sin(x^x)$$ over the $[0, 3]$.
• Its behaviour is not simple to understand.

x_big = np.arange(0.01, 3.01, 0.01)
ys = np.sin(x_big**x_big)
_ = plt.plot(x_big, ys, 'b-')
plt.xlabel('x');plt.ylabel('y');
_ = plt.axis('equal')

• At this large scale, the function’s behavior is not simple.
• However, if we reduce our range to something smaller like $[1.75, 2.25]$ , we see that the graph becomes much simpler.
• You can think as if we are zooming into a small part of it

x_med = np.arange(1.75, 2.25, 0.001)
ys = np.sin(x_med**x_med)
_ = plt.plot(x_med, ys, 'b-')
plt.xlabel('x');plt.ylabel('y');
_ = plt.axis('equal')

Taking this to an extreme, if we zoom into a tiny segment, the behavior becomes far simpler: it is just a straight line.

x_small = np.arange(2.0, 2.01, 0.0001)
ys = np.sin(x_small**x_small)
_ = plt.plot(x_small, ys, 'b-')
plt.xlabel('x');plt.ylabel('y');
_ = plt.axis('equal')

• This is the key observation of single variable calculus: the behavior of familiar functions can be modeled by a line in a small enough range.

• This means that for most functions, it is reasonable to expect that as we shift the $x$ value of the function by a little bit, the output $f(x)$ will also be shifted by a little bit.

• The only question we need to answer is, "How large is the change in the output compared to the change in the input? Is it half as large? Twice as large?"

Thus, we can consider the ratio of the change in the output of a function for a small change in the input of the function. We can write this formally as

$$ \frac{L(x+\epsilon) - L(x)}{(x+\epsilon) - x} = \frac{L(x+\epsilon) - L(x)}{\epsilon}. $$

$$\frac{df}{dx}(x) = \lim_{\epsilon \rightarrow 0}\frac{f(x+\epsilon) - f(x)}{\epsilon}.$$

Different texts will use different notations for the derivative. For instance, all of the below notations indicate the same thing:

$$ \frac{df}{dx} = \frac{d}{dx}f = f' = \nabla_xf = D_xf = f_x. $$

Finite Difference

• Take a value $\mbf{x}$ and see how the function $f(\mbf{x}+\epsilon)$ changes in the neighborhood of that value under small perturbation $\epsilon$.

• Is this a good method?

• NO! Super slow, there is no optimization.

Linear Approximation

When working with derivatives, it is often useful to geometrically interpret the approximation used above. In particular, note that the equation

$$ f(x+\epsilon) \approx f(x) + \epsilon \frac{df}{dx}(x), $$

Linear Approximation

Approximates the value of $f$ by:

• a line which passes through the point $(x, f(x))$
• has slope $\frac{df}{dx}(x)$

in a neighbourhood $[-\epsilon,+\epsilon]$

In this way we say that the derivative gives a linear approximation to the function $f$, as illustrated below:

Gradient

$\def\der#1#2{\frac{\partial #1}{\partial #2}}$ $\def\derr#1#2#3{\frac{\partial^2 #1}{\partial#2\partial #3}}$

• Function: $f:\mathbb{R}^d \mapsto\mathbb{R}$

$$\nabla_{\mbf{x}}f(\mbf{x}) = \nabla_{\mbf{x}}f\left([x_1,\ldots,x_d]\right) = \left[\der{f\left(\mbf{x}\right)}{x_1},...,\der{f\left(\mbf{x}\right)}{x_d} \right]^T$$

• Geometric Interpretation

  • Direction of steepest ascent.

  • The direction to change the input so that the function values go up in $[x,x+\epsilon]$

    $$f\Big(\mbf{x} + \epsilon\nabla_{\mbf{x}}f(\mbf{x})\Big) \ge f(\mbf{x})$$

  • Gradient can be defined for matrices too not only vector $\nabla_{\mbf{X}}f(\mbf{X})$
  • Just think of the matrix as a long, stretched vector

Figure credit

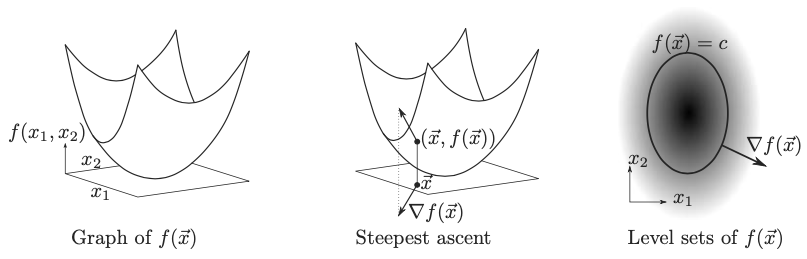

The gradient, represented by the blue arrows, denotes the direction of greatest change of a scalar function. The values of the function are represented in grayscale and increase in value from white (low) to dark (high).

Figure credit Wikipedia

Try it yourself - Gradient of dot product

Given the function $f(\mbf{x};\mbf{b})= \mbf{b}^T\mbf{x}$ parametrized by the vector $\mbf{b}$ that takes as input a vector $\mbf{x}$—both vectors in $\mathbb{R}^d$—compute the gradient of x $$\nabla_\mbf{x} f(\mbf{x}) = \nabla_\mbf{x} \mbf{b}^T\mbf{x}$$

Hessian

• Function: $f:\mathbb{R}^d \mapsto\mathbb{R}$

$$\nabla^2_{\mbf{x}}f(\mbf{x}) = \nabla^2_{\mbf{x}}f\left([x_1,\ldots,x_d]\right) = \begin{bmatrix} \derr{f\left(\mbf{x}\right)}{x_1}{x_1} & \ldots & \derr{f\left(\mbf{x}\right)}{x_1}{x_d} \\ \ldots & & \ldots \\ \derr{f\left(\mbf{x}\right)}{x_d}{x_1} & \ldots & \derr{f\left(\mbf{x}\right)}{x_d}{x_d} \\ \end{bmatrix} $$

• Geometric Interpretation
  • Indicates the curvature of the function (can tell you if you are close to local minimum/maximum or saddle point)
  • Can be interpreted as the Jacobian matrix of the gradient of the function
  • Symmetric and Square

Quadratic Forms

Given $\mbf{A} \in \mathbb{R}^{d\times d}$ symmetric and square and $\mbf{x} \in \mathbb{R}^d$ then a quadratic form is: $$\mbf{x}^T \mbf{A}\mbf{x}$$

• It is a vector to scalar function
• It is used for characterizing the definiteness of matrices

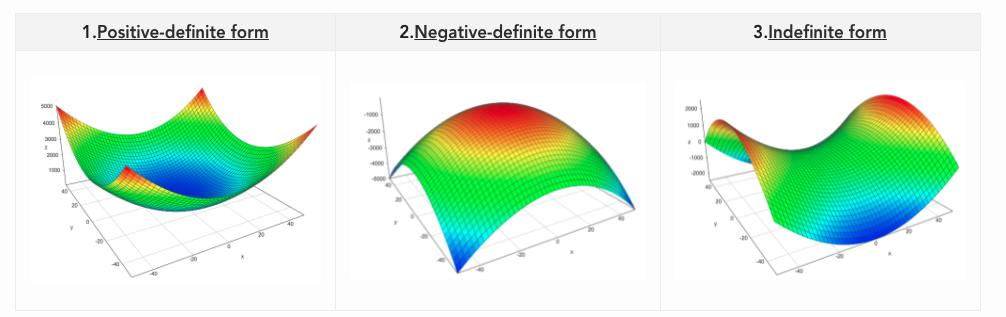

Definiteness and relation with Eigenvalues

• $\forall \mbf{x} \neq 0 \qquad \mbf{x}^T \mbf{A}\mbf{x} \gt 0 $ is positive definite (PD) - Relation with eigenvalues all positive
• $\forall \mbf{x} \neq 0 \qquad \mbf{x}^T \mbf{A}\mbf{x} \ge 0 $ is positive semi-definite (PSD) - Relation with eigenvalues all non-negative
• $\forall \mbf{x} \neq 0 \qquad \mbf{x}^T \mbf{A}\mbf{x} \lt 0 $ is negative definite (ND) - Relation with eigenvalues all negative

• $\forall \mbf{x} \neq 0 \qquad \mbf{x}^T \mbf{A}\mbf{x} \le 0 $ is negative semi-definite (NSD) - Relation with eigenvalues all non-positive

• $\forall \mbf{x} \neq 0 \qquad \mbf{x}^T \mbf{A}\mbf{x} \lt, \gt 0 $ is indefinite - Relation with eigenvalues mixed in sign

Common Derivatives

• Derivative of constants. $\frac{d}{dx}c = 0$.
• Derivative of linear functions. $\frac{d}{dx}(ax) = a$.
• Power rule. $\frac{d}{dx}x^n = nx^{n-1}$.
• Derivative of exponentials. $\frac{d}{dx}e^x = e^x$.
• Derivative of the logarithm. $\frac{d}{dx}\log(x) = \frac{1}{x}$.

Derivative Rules

• Important: Derivation is a linear operator.

1. Derivative of the sum is the sum of derivatives
2. Derivative of a scalar product is the scalar product of derivative.

• Sum rule. $\qquad\nabla_{\mbf{x}} \left( g(\mbf{x}) + h(\mbf{x}) \right) = \nabla_{\mbf{x}}g(\mbf{x}) + \nabla_{\mbf{x}}h(\mbf{x}) $
• Product rule. $\qquad\nabla_{\mbf{x}} \left(g(\mbf{x})\cdot h(\mbf{x})\right) = \nabla_{\mbf{x}}[g(\mbf{x})]h(\mbf{x}) + \nabla_{\mbf{x}}[h(\mbf{x})]g(\mbf{x})$
• Chain rule. $\qquad\nabla_{\mbf{x}} g(h(\mbf{x})) = \nabla_{h(\mbf{x})} [g(h(\mbf{x}))]\cdot\nabla_{\mbf{x}}h(\mbf{x})\qquad$ Very important for Deep Learning

Try it yourself

Compute $\nabla_{\mbf{x}}\mbf{x}^T\mbf{A}\mbf{x}$.

Can be seen as $\mbf{x}^T\mbf{f(x)}$ where $\mbf{f(x)} = \mbf{A}\mbf{x}$
